MultiVelo Fig5

Data for this figure can be found at the links below:

RNA: https://figshare.com/articles/dataset/Human_HSPC_RNA_Data/22575358

ATAC: https://figshare.com/articles/dataset/Human_HSPC_ATAC_Data/22575343

If you do not download them manually, the notebook will do so automatically.

Important Note:

This notebook is designed to run on the current commit of Multivelo on GitHub. It utilizes features that are not yet available on the current pip release. As such, it is recommended to download Multivelo from GitHub and use that instead of the version available on PyPI.

[1]:

import os
import scipy
import numpy as np
import pandas as pd
import scanpy as sc
import scvelo as scv
import sys
import multivelo as mv
import matplotlib.pyplot as plt
import requests
sys.path.append('../')
print(sys.path)

['/home/jrepucci/multivelo_1/Examples', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python39.zip', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python3.9', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python3.9/lib-dynload', '', '/home/jrepucci/.local/lib/python3.9/site-packages', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python3.9/site-packages', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python3.9/site-packages/locket-0.2.1-py3.9.egg', '/sw/pkgs/arc/python3.9-anaconda/2021.11/lib/python3.9/site-packages/IPython/extensions', '/home/jrepucci/.ipython', '/home/jrepucci/.local/lib/python3.9/site-packages/multivelo/..', '/home/jrepucci/.local/lib/python3.9/site-packages/multivelo/..', '/home/jrepucci/.local/lib/python3.9/site-packages/multivelo', '/home/jrepucci/.local/lib/python3.9/site-packages/multivelo/..', '/home/jrepucci/.local/lib/python3.9/site-packages/multivelo/..', '../']

[2]:

import time

mv.settings.LOG_FILENAME = "Fig5_" + str(time.time()) + ".txt"

[3]:

scv.settings.verbosity = 3
scv.settings.presenter_view = True
scv.set_figure_params('scvelo')
pd.set_option('display.max_columns', 100)
pd.set_option('display.max_rows', 200)
np.set_printoptions(suppress=True)

[4]:

rna_url = "https://figshare.com/ndownloader/files/40064320"
atac_url = "https://figshare.com/ndownloader/files/40064311"

rna_path = "3423_MV_2_adata_postpro.h5ad"
atac_path = "3423_MV_2_adata_atac_postpro.h5ad"

[5]:

adata_rna = sc.read(rna_path, backup_url=rna_url)
adata_atac = sc.read(atac_path, backup_url=atac_url)

Running multi-omic dynamical model

MultiVelo incorporates chromatin accessibility information into RNA velocity and achieves better lineage predictions.

The detailed argument list can be shown with “help(mv.recover_dynamics_chrom)”.

WARNING:

The recover_dynamics_chrom() step can take a long time, even with parallelization. As such, we added a h5ad file to figshare containing the AnnData object returned by recover_dynamics_chrom(). In absence of a local h5ad file of the same name, a cell below the recover_dynamics_chrom() step will download it automatically using sc.read(). If you want to run this notebook in shorter amount of time, then you can run that cell first and skip the preprocessing done in the cells above it. However, if you want to run all cells, including the preprocessing steps, the notebook will write and save the h5ad file itself rather than downloading it from figshare.

[6]:

adata_rna_scv = adata_rna.copy()

[7]:

scv.tl.recover_dynamics(adata_rna_scv)
scv.tl.velocity(adata_rna_scv, mode="dynamical")
scv.tl.velocity_graph(adata_rna_scv, n_jobs=1)
scv.tl.latent_time(adata_rna_scv)
scv.pl.velocity_embedding_stream(adata_rna_scv, basis='umap', color='leiden')

recovering dynamics (using 1/36 cores)

    finished (0:24:10) --> added
    'fit_pars', fitted parameters for splicing dynamics (adata.var)
computing velocities
    finished (0:00:10) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/36 cores)

    finished (0:00:51) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)
computing terminal states
    identified 5 regions of root cells and 1 region of end points .
    finished (0:00:04) --> added
    'root_cells', root cells of Markov diffusion process (adata.obs)
    'end_points', end points of Markov diffusion process (adata.obs)
computing latent time using root_cells as prior
    finished (0:00:05) --> added
    'latent_time', shared time (adata.obs)
computing velocity embedding
    finished (0:00:03) --> added
    'velocity_umap', embedded velocity vectors (adata.obsm)
_images/MultiVelo_Fig5_8_5.png
[8]:

scv.tl.recover_dynamics(adata_rna)
scv.tl.velocity(adata_rna, mode="dynamical")
scv.tl.velocity_graph(adata_rna, n_jobs=1)

recovering dynamics (using 1/36 cores)

    finished (0:19:34) --> added
    'fit_pars', fitted parameters for splicing dynamics (adata.var)
computing velocities
    finished (0:00:10) --> added
    'velocity', velocity vectors for each individual cell (adata.layers)
computing velocity graph (using 1/36 cores)

    finished (0:00:51) --> added
    'velocity_graph', sparse matrix with cosine correlations (adata.uns)

[9]:

# This will take a while. Parallelization is high recommended.

mv.settings.VERBOSITY = 0

adata_result = mv.recover_dynamics_chrom(adata_rna,
                                        adata_atac,
                                        max_iter=5,
                                        init_mode="invert",
                                        parallel=True,
                                        n_jobs = 10,
                                        save_plot=False,
                                        rna_only=False,
                                        fit=True,
                                        n_anchors=500,
                                        extra_color_key='leiden'
                                        )

[10]:

# Save the result for use later on
adata_result.write("multivelo_result_fig5.h5ad")

[11]:

h5ad_url = "https://figshare.com/ndownloader/files/40066924"
adata_result = sc.read("multivelo_result_fig5.h5ad", backup_url = h5ad_url)

Computing velocity stream and latent time

[12]:

mv.set_velocity_genes(adata_result, likelihood_lower=0.02)
mv.velocity_graph(adata_result)
mv.latent_time(adata_result)

computing velocity graph (using 1/36 cores)

    finished (0:01:19) --> added
    'velo_s_norm_graph', sparse matrix with cosine correlations (adata.uns)
computing terminal states
WARNING: Uncertain or fuzzy root cell identification. Please verify.
    identified 7 regions of root cells and 1 region of end points .
    finished (0:00:03) --> added
    'root_cells', root cells of Markov diffusion process (adata.obs)
    'end_points', end points of Markov diffusion process (adata.obs)
computing latent time using root_cells as prior
    finished (0:00:05) --> added
    'latent_time', shared time (adata.obs)

Fig 5a

[13]:

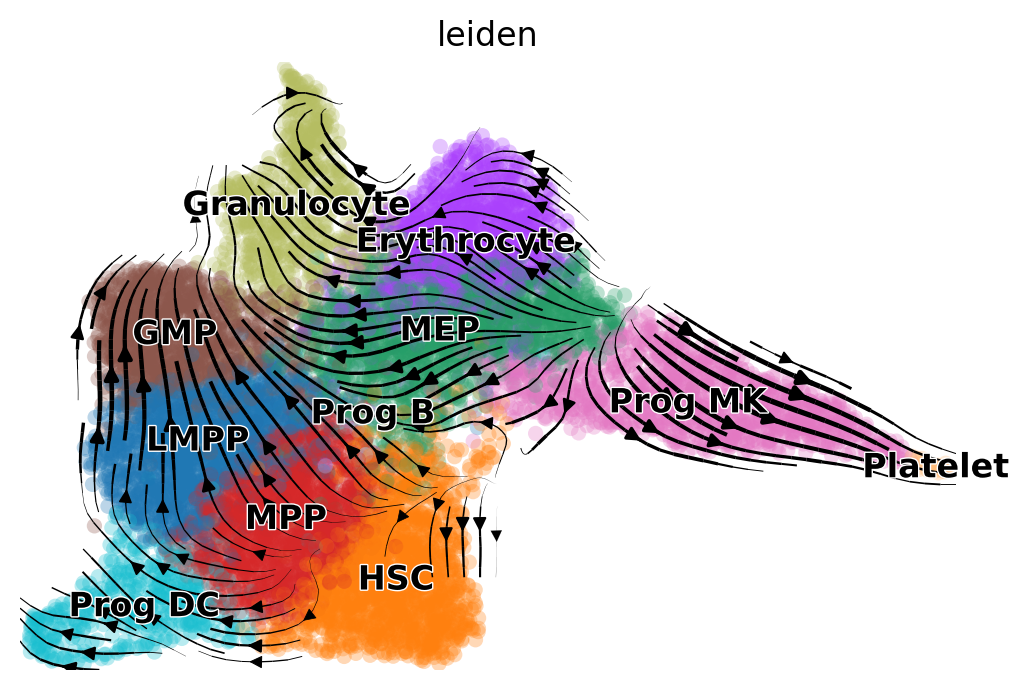

mv.velocity_embedding_stream(adata_result, basis='umap', color='leiden', show=True)

computing velocity embedding
    finished (0:00:03) --> added
    'velo_s_norm_umap', embedded velocity vectors (adata.obsm)
_images/MultiVelo_Fig5_16_1.png
[14]:

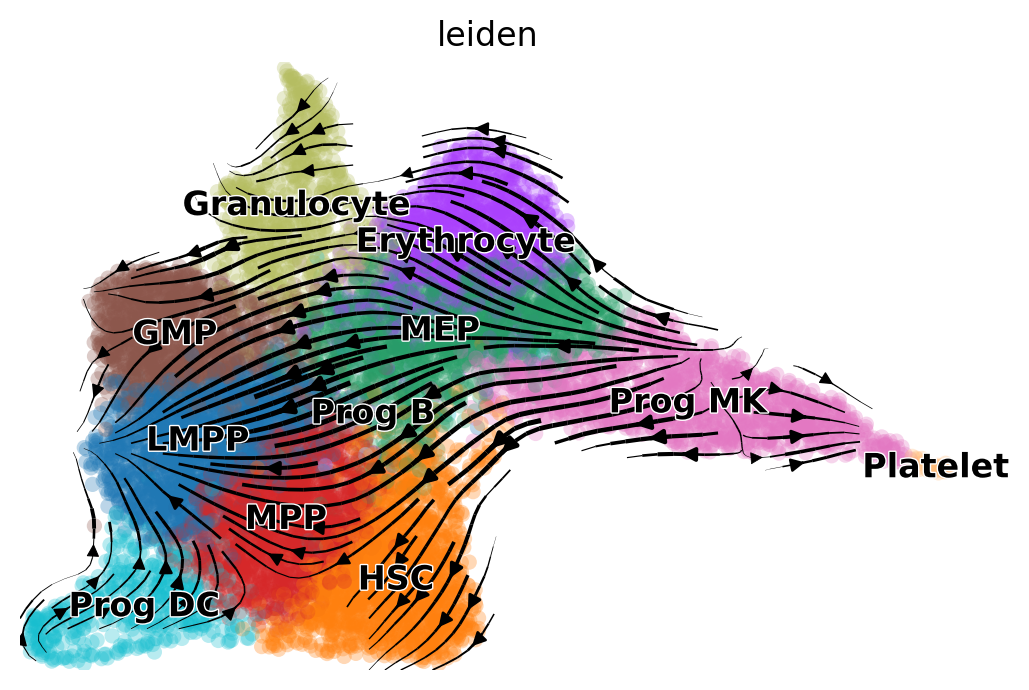

scv.pl.velocity_embedding_stream(adata_result, basis='umap', color='leiden')

computing velocity embedding
    finished (0:00:03) --> added
    'velocity_umap', embedded velocity vectors (adata.obsm)
_images/MultiVelo_Fig5_17_1.png

Fig 5b

[15]:

mv.pie_summary(adata_result)
_images/MultiVelo_Fig5_19_0.png

Fig 5c

[16]:

mv.switch_time_summary(adata_result)
_images/MultiVelo_Fig5_21_0.png

Fig 5d

[17]:

# variables for subsetting the AnnData object to just the myeloid lineage
hsc_check = adata_result.obs['leiden'] == "HSC"
mpp_check = adata_result.obs['leiden'] == "MPP"
lmpp_check = adata_result.obs['leiden'] == "LMPP"
gmp_check = adata_result.obs['leiden'] == "GMP"

myeloid_check = (hsc_check | mpp_check | lmpp_check | gmp_check)


# variables for subsetting the AnnData object to just the erythrocyte lineage
erythrocyte_check = adata_result.obs['leiden'] == "Erythrocyte"
mep_check = adata_result.obs['leiden'] == "MEP"
hsc_check = adata_result.obs['leiden'] == "HSC"
progdc_check = adata_result.obs['leiden'] == "ProgDC"

erythroid_check = (erythrocyte_check | mep_check | hsc_check | progdc_check)


# variables for subsetting the AnnData object to just the platelet lineage
platelet_check = adata_result.obs['leiden'] == "Platelet"
progmk_check = adata_result.obs['leiden'] == "Prog MK"
mep_check = adata_result.obs['leiden'] == "MEP"

platelet_lineage_check = (platelet_check | progmk_check | mep_check | hsc_check)

[18]:

myeloid_data = adata_result[myeloid_check, :]

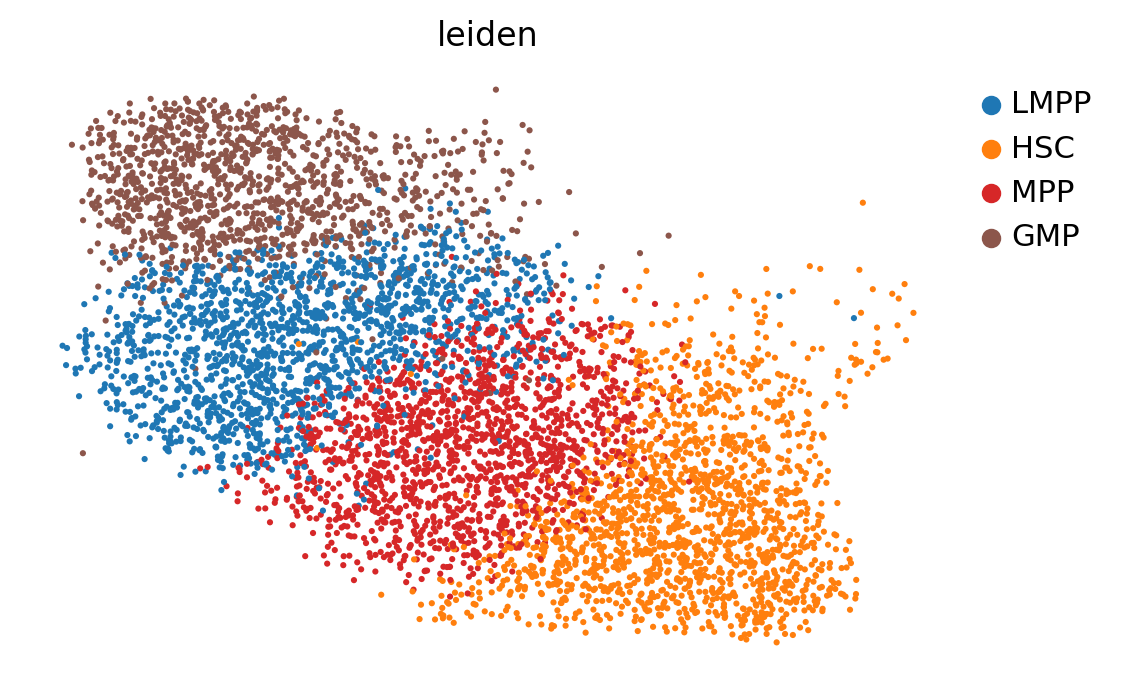

scv.pl.umap(myeloid_data, color='leiden')

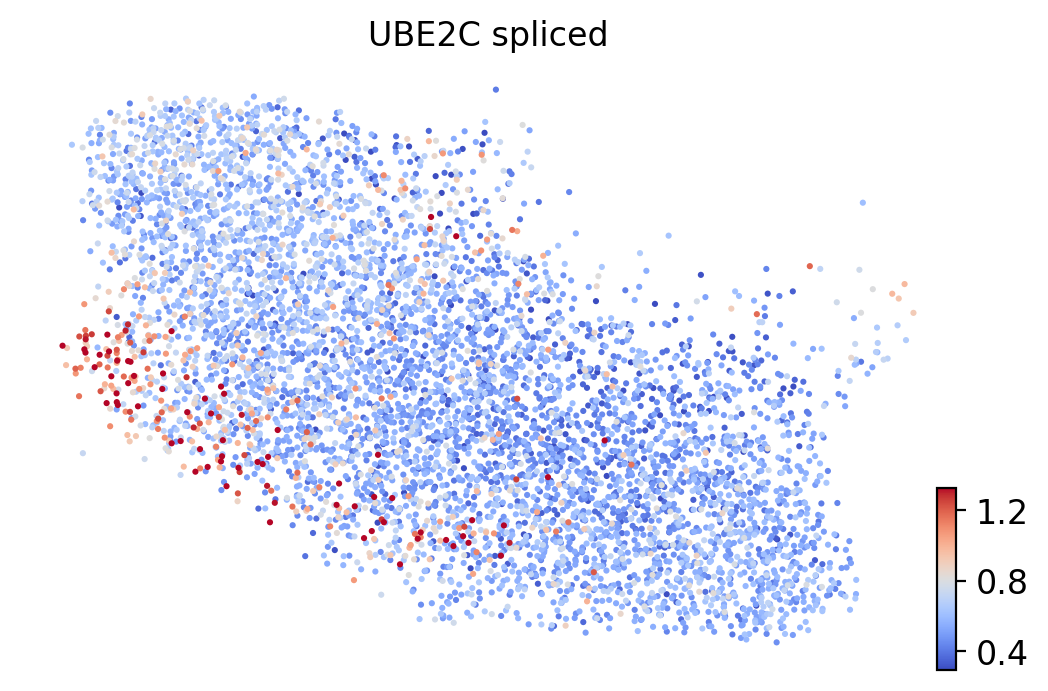

scv.pl.umap(myeloid_data, color='UBE2C', layer='Ms', title='UBE2C spliced', cmap="coolwarm")
scv.pl.umap(myeloid_data, color='UBE2C', layer='ATAC', title='UBE2C ATAC', perc=[0,99.5], cmap="coolwarm")
_images/MultiVelo_Fig5_24_0.png
_images/MultiVelo_Fig5_24_1.png
_images/MultiVelo_Fig5_24_2.png

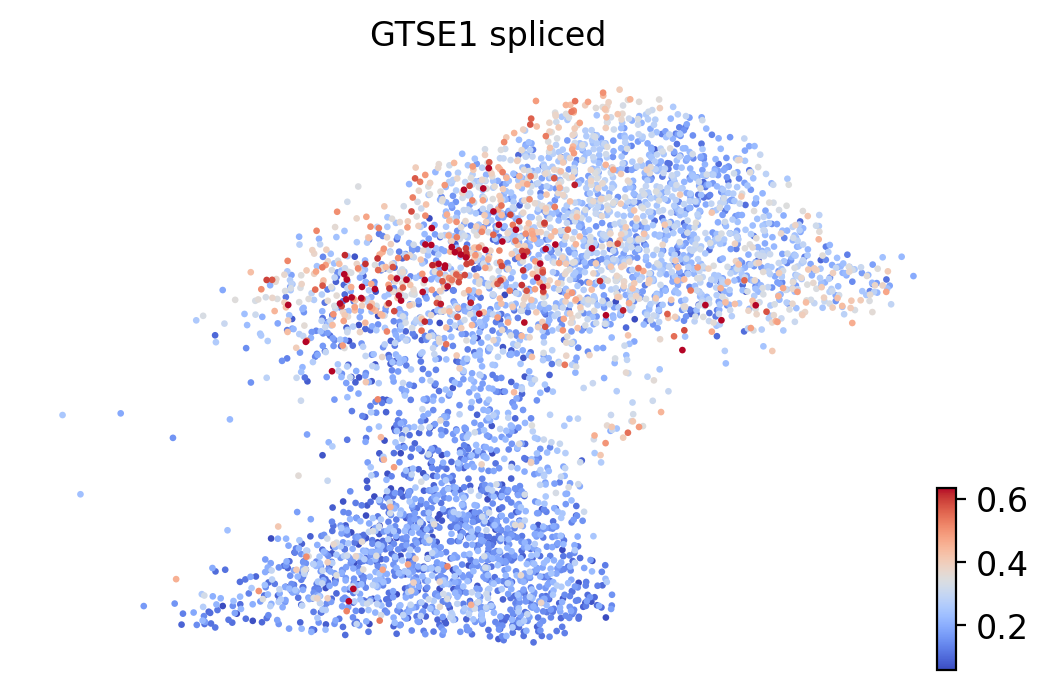

[19]:

erythroid_data = adata_result[erythroid_check, :]

scv.pl.umap(erythroid_data, color='leiden')
scv.pl.umap(erythroid_data, color='GTSE1', layer='Ms', title='GTSE1 spliced', cmap="coolwarm")
scv.pl.umap(erythroid_data, color='GTSE1', layer='ATAC', title='GTSE1 ATAC', perc=[0,99.5], cmap="coolwarm")
_images/MultiVelo_Fig5_25_0.png
_images/MultiVelo_Fig5_25_1.png
_images/MultiVelo_Fig5_25_2.png

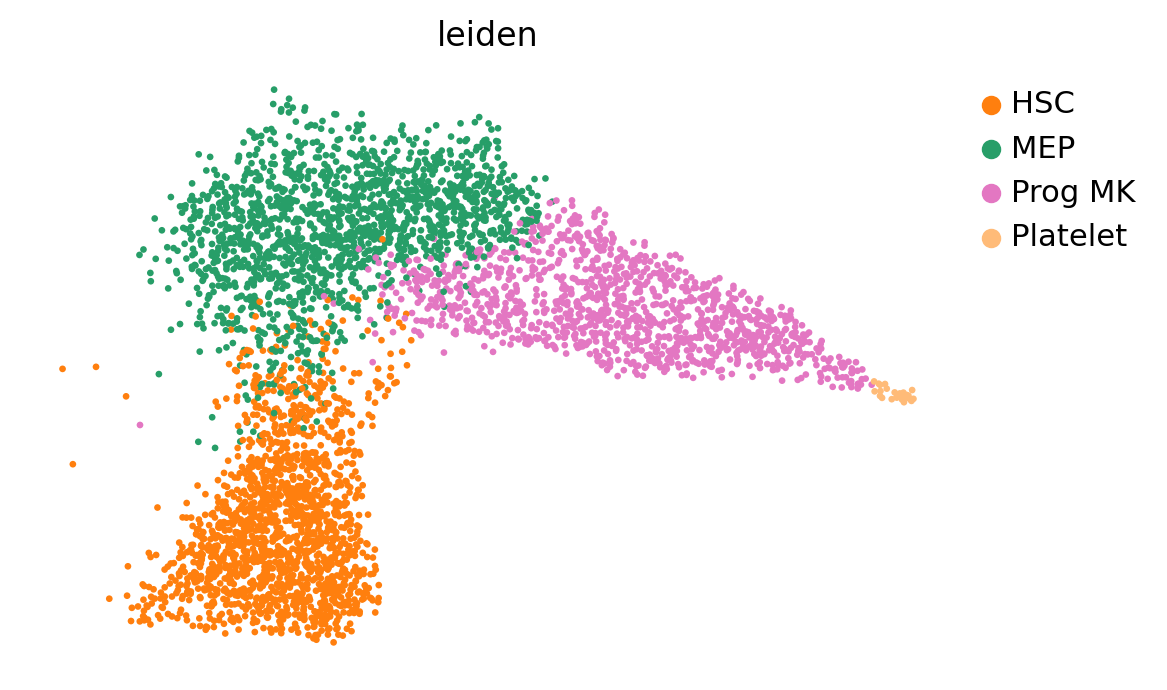

[20]:

platelet_data = adata_result[platelet_lineage_check, :]

scv.pl.umap(platelet_data, color='leiden')
scv.pl.umap(platelet_data, color='KIF20B', layer='Ms', title='KIF20B spliced', cmap="coolwarm")

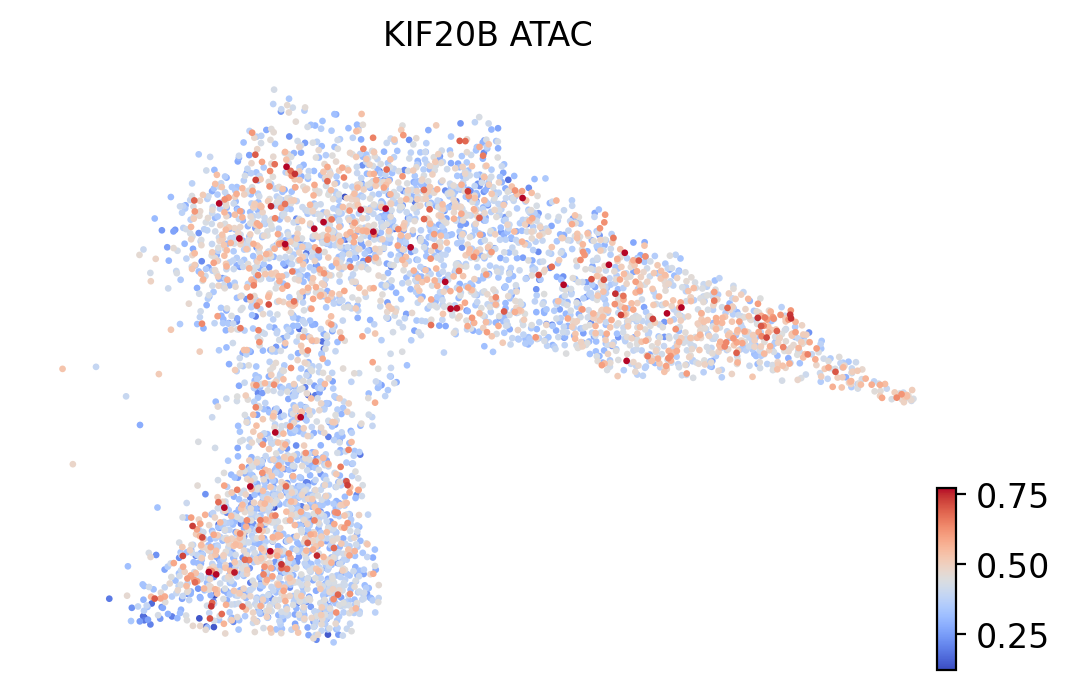

scv.pl.umap(platelet_data, color='KIF20B', layer='ATAC', title='KIF20B ATAC', perc=[0,99.5], cmap="coolwarm")
_images/MultiVelo_Fig5_26_0.png
_images/MultiVelo_Fig5_26_1.png
_images/MultiVelo_Fig5_26_2.png

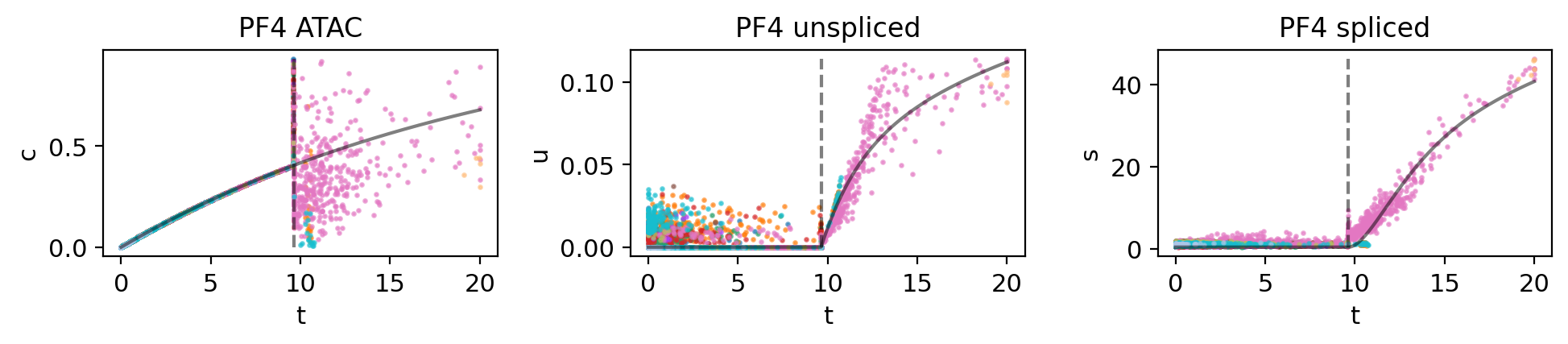

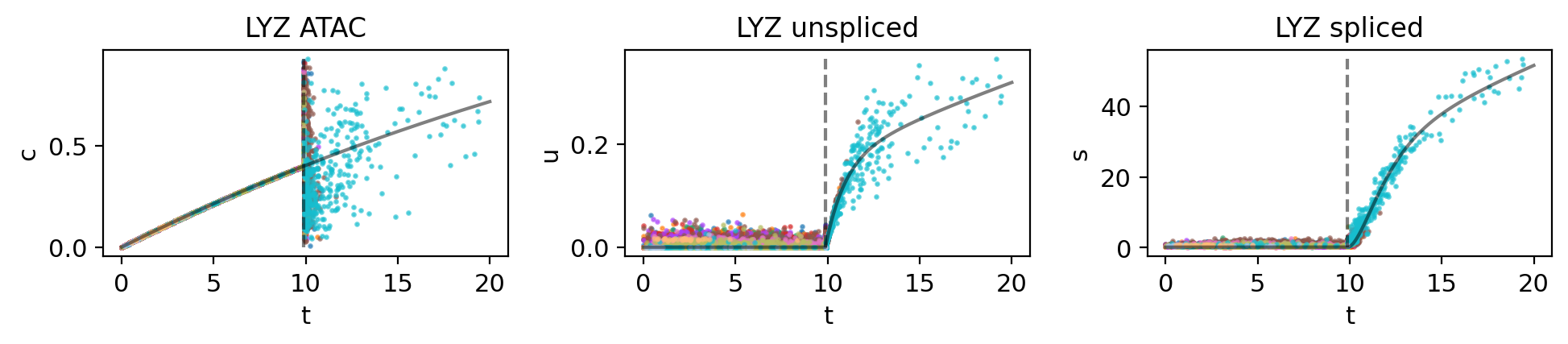

Fig 5e

[21]:

genes = ["AZU1", "HBD", "HDC", "LYZ", "PF4"]

for gene in genes:

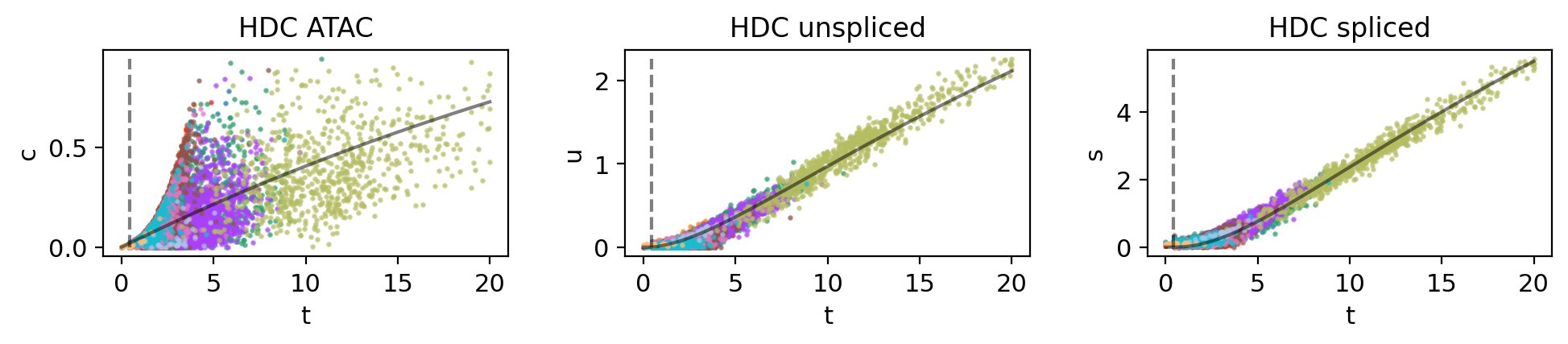

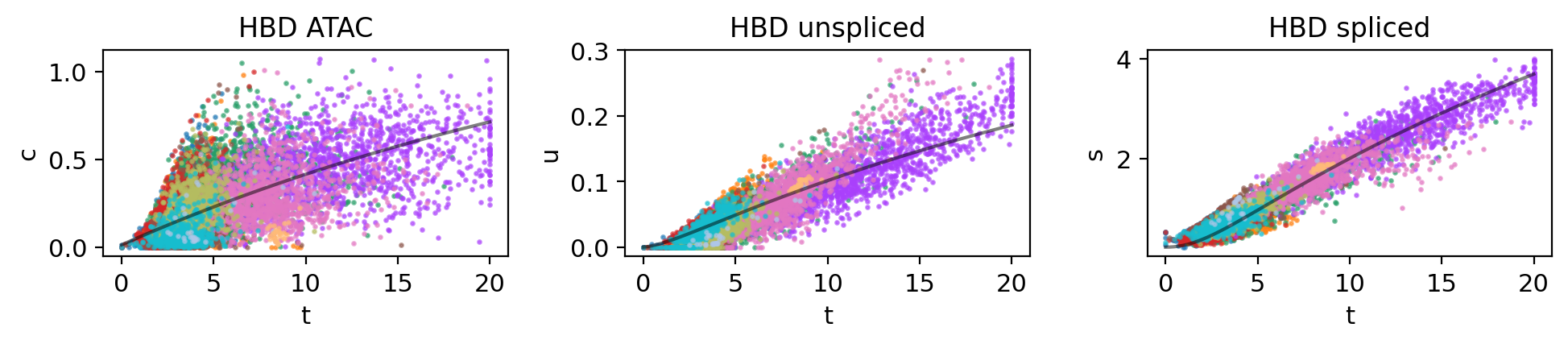

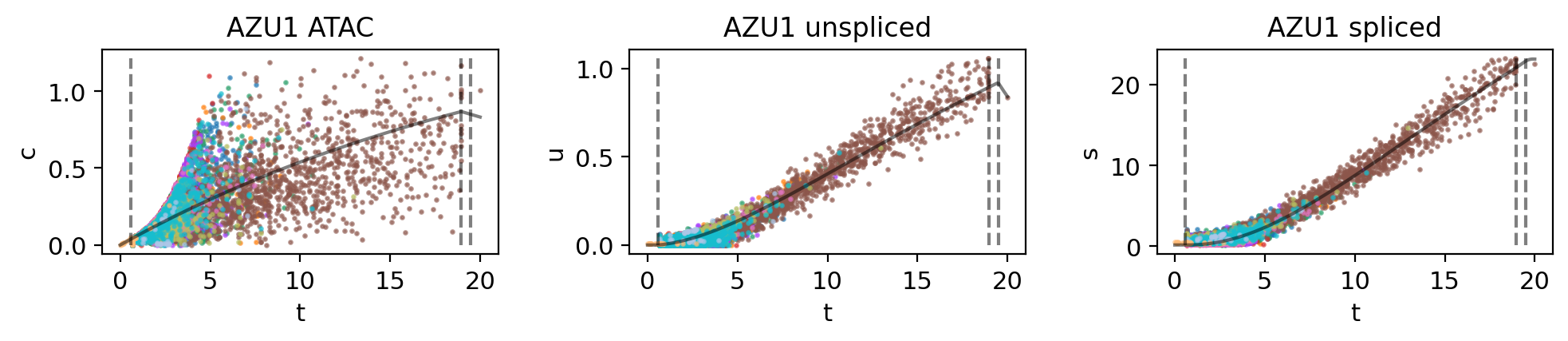

    mv.dynamic_plot(adata_result, genes=gene, color_by="leiden", cmap="tab20")
_images/MultiVelo_Fig5_28_0.png
_images/MultiVelo_Fig5_28_1.png
_images/MultiVelo_Fig5_28_2.png
_images/MultiVelo_Fig5_28_3.png
_images/MultiVelo_Fig5_28_4.png

Fig 5f

[22]:

genes = ["AZU1", "HBD", "HDC", "LYZ", "PF4"]

for gene in genes:

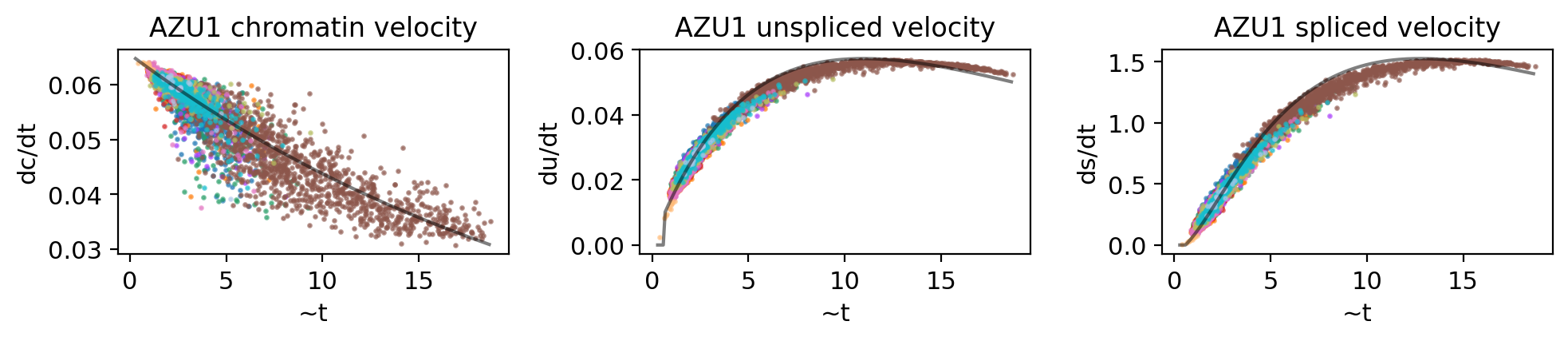

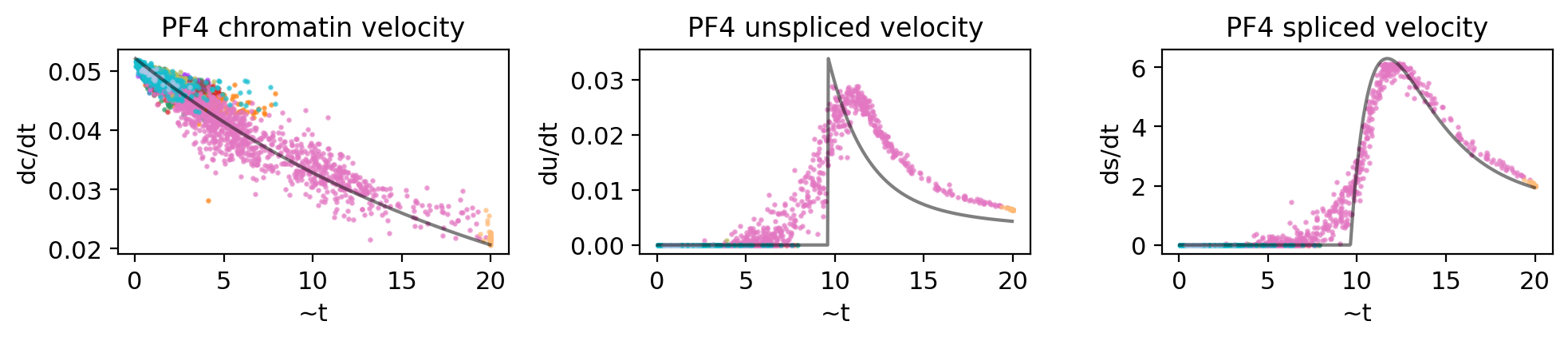

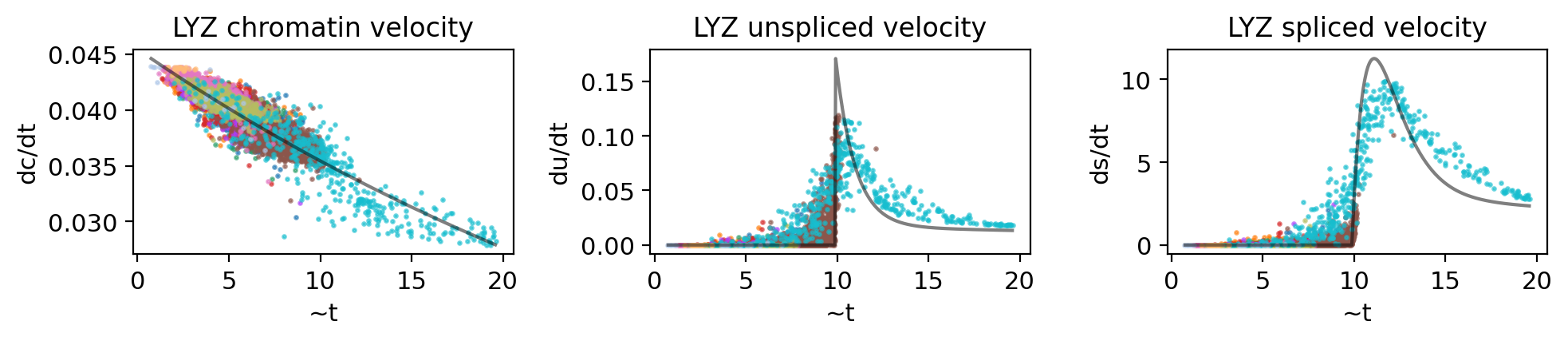

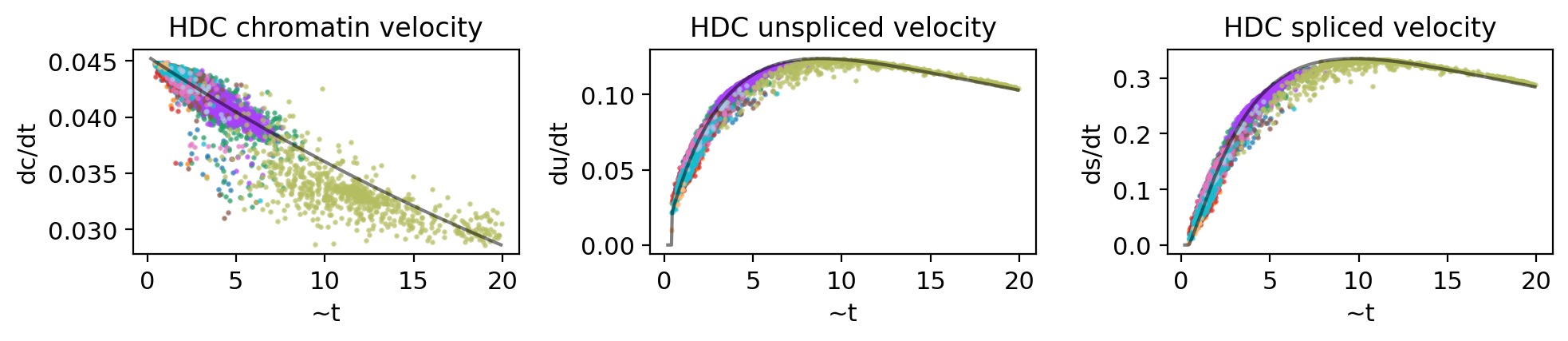

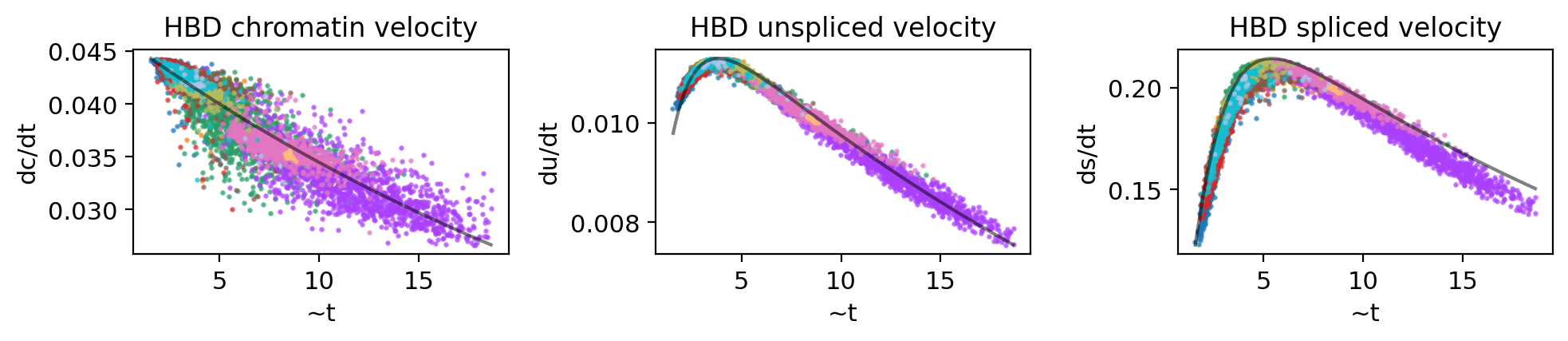

    mv.dynamic_plot(adata_result, by="velocity", genes=gene, color_by="leiden", cmap="tab20")
_images/MultiVelo_Fig5_30_0.png
_images/MultiVelo_Fig5_30_1.png
_images/MultiVelo_Fig5_30_2.png
_images/MultiVelo_Fig5_30_3.png
_images/MultiVelo_Fig5_30_4.png

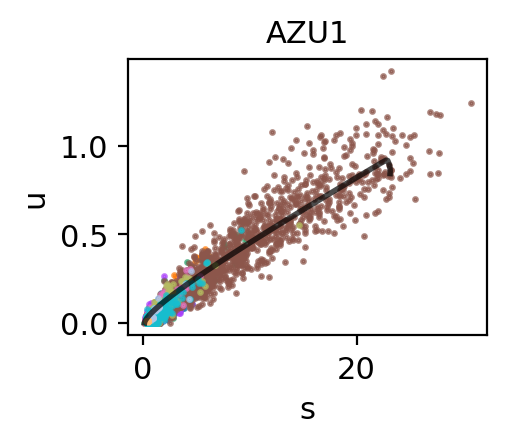

Fig 5g

[23]:

genes = ["AZU1", "HBD", "HDC", "LYZ", "PF4"]

for gene in genes:

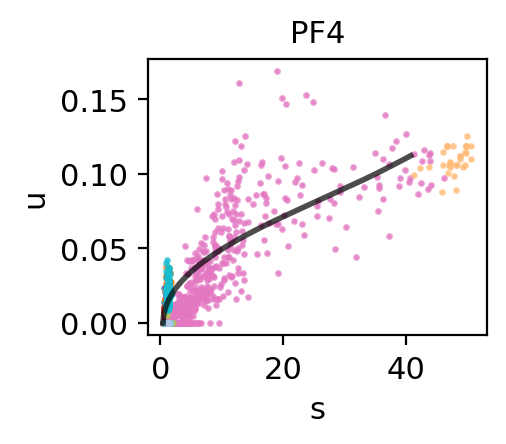

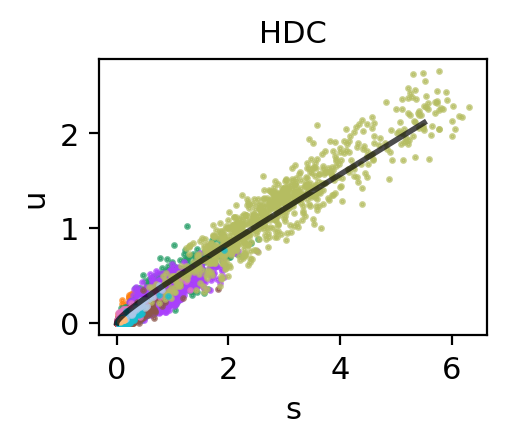

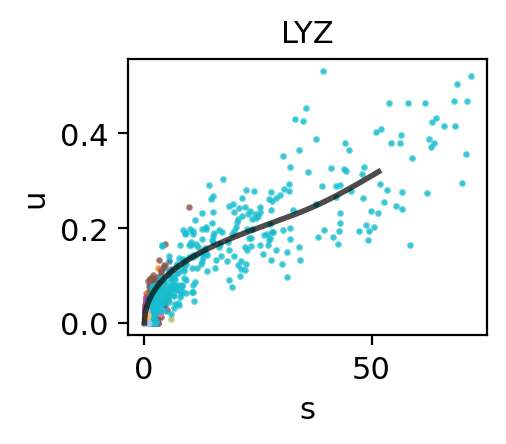

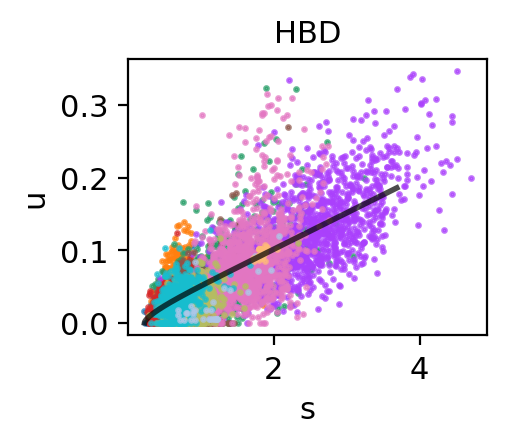

    mv.scatter_plot(adata_result, genes=gene, color_by="leiden", cmap="tab20", show_switches=False)
_images/MultiVelo_Fig5_32_0.png
_images/MultiVelo_Fig5_32_1.png
_images/MultiVelo_Fig5_32_2.png
_images/MultiVelo_Fig5_32_3.png
_images/MultiVelo_Fig5_32_4.png
[ ]:
